Công tắc trung gian 16AX, size S M3T31_IM_WE : AvatarOn A
- Mã sản phẩm: M3T31_IM_WE
- Thương hiệu:Dòng AvatarOn A (Schneider)
- Bảo hành: 12 tháng
- Loại: Hạt công tắc
Quý khách hàng có nhu cầu mua số lượng lớn thiết bị điện thương hiệu Schneider, vui lòng gửi yêu cầu báo giá qua email sale@thiebidiendgp.vn hoặc báo giá trực tiếp trên website để nhận chiết khấu ƯU ĐÃI TỐT NHẤT trong tháng 6.
Thông số kỹ thuật

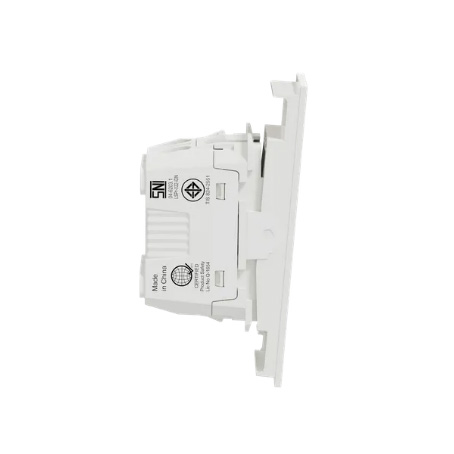

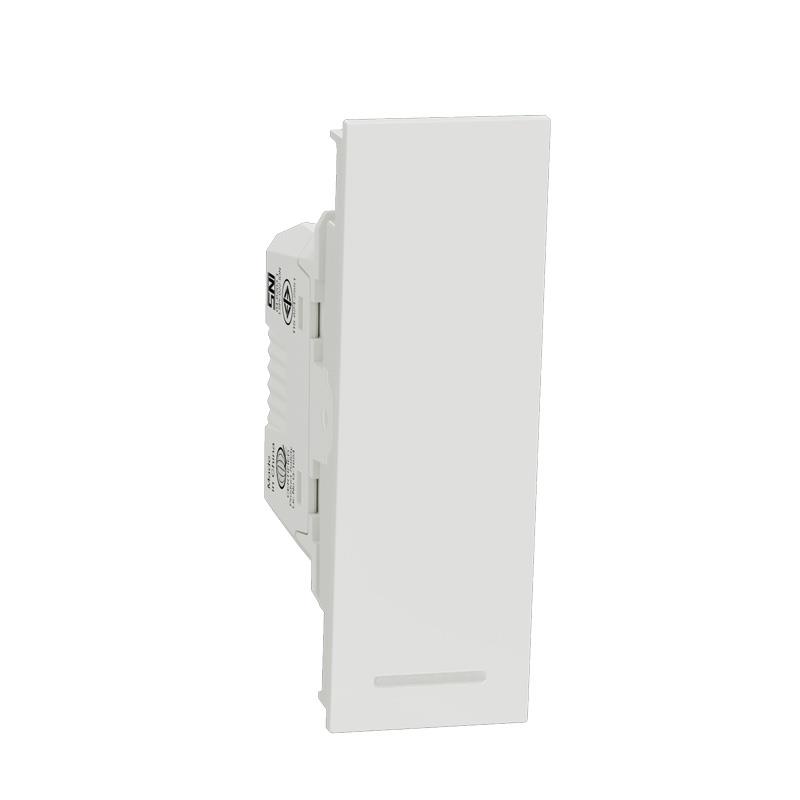

Intermediate Switch, Avataron A, 16AX 250V, S sized, White
range of product | |
---|---|
product or component type |
Intermediate switch |
load type |
Resistive load |
colour tint |
White (WE) |
device presentation |
Complete product |
rated current |
16 AX at 250 V AC 50 Hz |
switch application |
Control switch |
clamping connection capacity |
2 x 1.5 mm² for solid cable(s) |
connections - terminals |
Screwless type terminals |
local signalling |
Fluorescent (white) |
material |
PC: dolly |
device mounting |
Flush |
width |
23.1 mm |
height |
69.3 mm |
depth |
35 mm |
embedding depth |
24 mm |
IP degree of protection |
IP20 |
maximum ambient air temperature for operation |
45 °C |
ambient air temperature for storage |
-5…60 °C |
relative humidity |
0…95 % |
operating altitude |
<= 2000 m |
standards |
IEC 60669-1 |
product certifications |
IEC |
