Hình ảnh, màu sắc có thể chưa được cập nhật đúng, vui lòng xem kỹ mã hàng và mẫu mã.

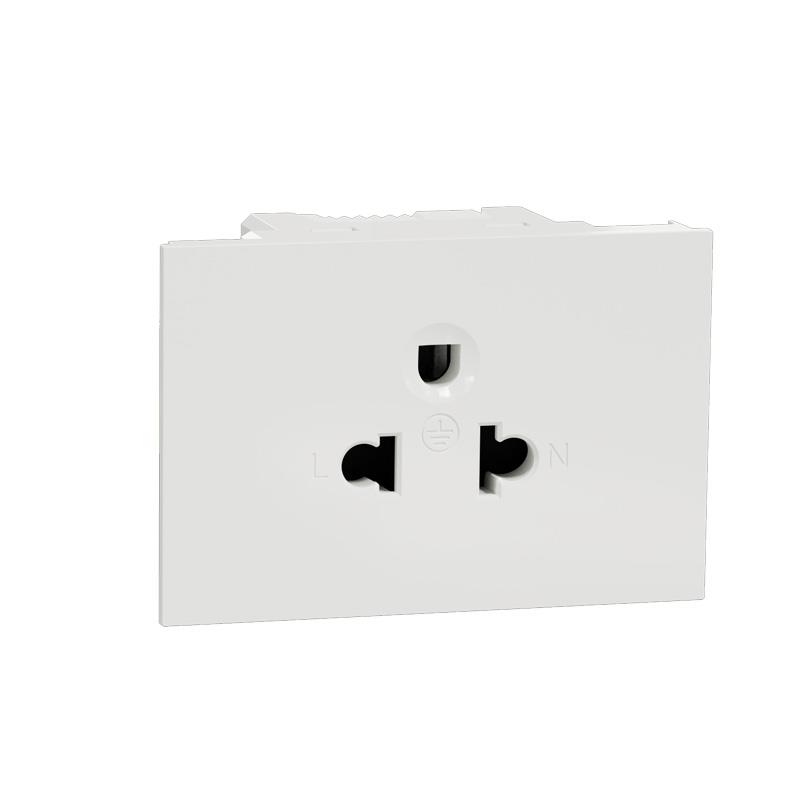

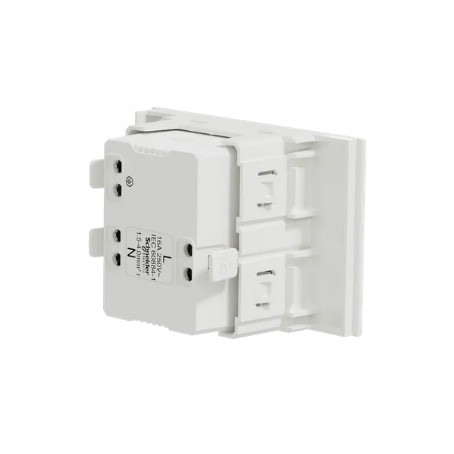

Ổ cắm đơn 3 chấu 16A, size 2S cắm nhanh M3T426UST_WE : AvatarOn A
- Mã sản phẩm: M3T426UST_WE
- Thương hiệu:Dòng AvatarOn A (Schneider)
- Bảo hành: 12 tháng
- Loại: Ổ cắm
Quý khách hàng có nhu cầu mua số lượng lớn thiết bị điện thương hiệu Schneider, vui lòng gửi yêu cầu báo giá qua email sale@thiebidiendgp.vn hoặc báo giá trực tiếp trên website để nhận chiết khấu ƯU ĐÃI TỐT NHẤT trong tháng 10.
Thông số kỹ thuật
Socket-outlet, Avataron A, Universal, 16A, 250V, 3 Pin, 2S sized, White
range of product | |
product or component type |
Socket-outlet |
device presentation |
Complete product |
colour tint |
White |
outlet poles configuration |
2P + E |
rated current |
16 A at 250 V AC 50...60 Hz |
socket number |
1 |
clamping connection capacity |
2 x 1.5...2 x 4 mm² for solid cable(s) |
connections - terminals |
Screwless terminals |
material |
Polycarbonate cover |
device mounting |
Flush |
width |
46.6 mm |
height |
69.3 mm |
depth |
36.35 mm |
embedding depth |
24.85 mm |
IP degree of protection |
IP20 |
maximum ambient air temperature for operation |
35 °C |
ambient air temperature for storage |
-5…45 °C |
relative humidity |
0…95 % |
operating altitude |
< 2000 m |
standards |
IEC 60884-1 |
product certifications |
IEC |
