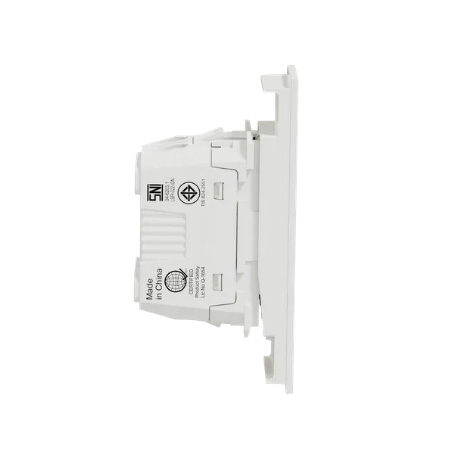

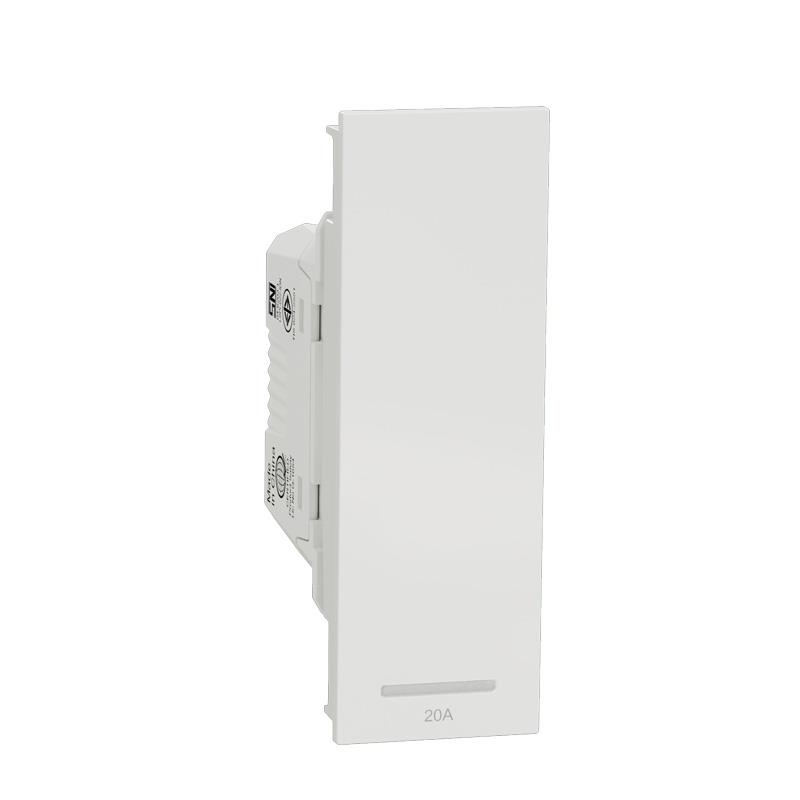

Công tắc 2 cực 20A, size S
- Mã sản phẩm: M3T31_D20N_WE
- Thương hiệu:Dòng AvatarOn A (Schneider)
- Bảo hành: 12 tháng
- Loại: Công tắc
Quý khách hàng có nhu cầu mua số lượng lớn thiết bị điện thương hiệu Schneider, vui lòng gửi yêu cầu báo giá qua email sale@thiebidiendgp.vn hoặc báo giá trực tiếp trên website để nhận chiết khấu ƯU ĐÃI TỐT NHẤT trong tháng 3.
Thông số kỹ thuật
Switch, Avataron A, 20A 250V, Double Pole, with LED S sized, White
range of product | |
product or component type |
Switch |
load type |
Resistive load |
colour tint |
White (WE) |
device presentation |
Complete product |
rated current |
20 A at 250 V AC 50 Hz |
switch function |
2-pole |
switch application |
Control switch |
clamping connection capacity |
2 x 1.5 mm² for solid cable(s) |
connections - terminals |
Screwless type terminals |
local signalling |
Fluorescent (white) |
material |
PC: dolly |
device mounting |
Flush |
width |
23.1 mm |
height |
69.3 mm |
depth |
35 mm |
embedding depth |
24 mm |
IP degree of protection |
IP20 |
maximum ambient air temperature for operation |
45 °C |
ambient air temperature for storage |
-5…60 °C |
relative humidity |
0…95 % |
operating altitude |
<= 2000 m |
standards |
IEC 60669-1 |
product certifications |
IEC |
