Hình ảnh, màu sắc có thể chưa được cập nhật đúng, vui lòng xem kỹ mã hàng và mẫu mã.

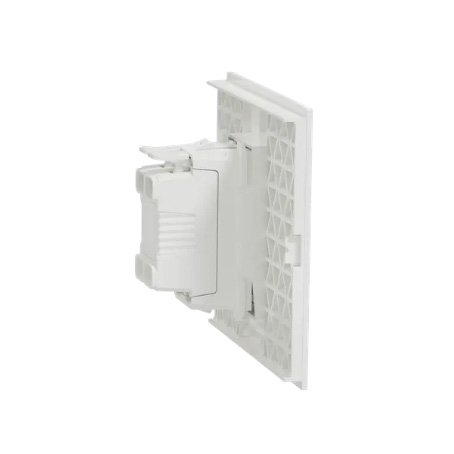

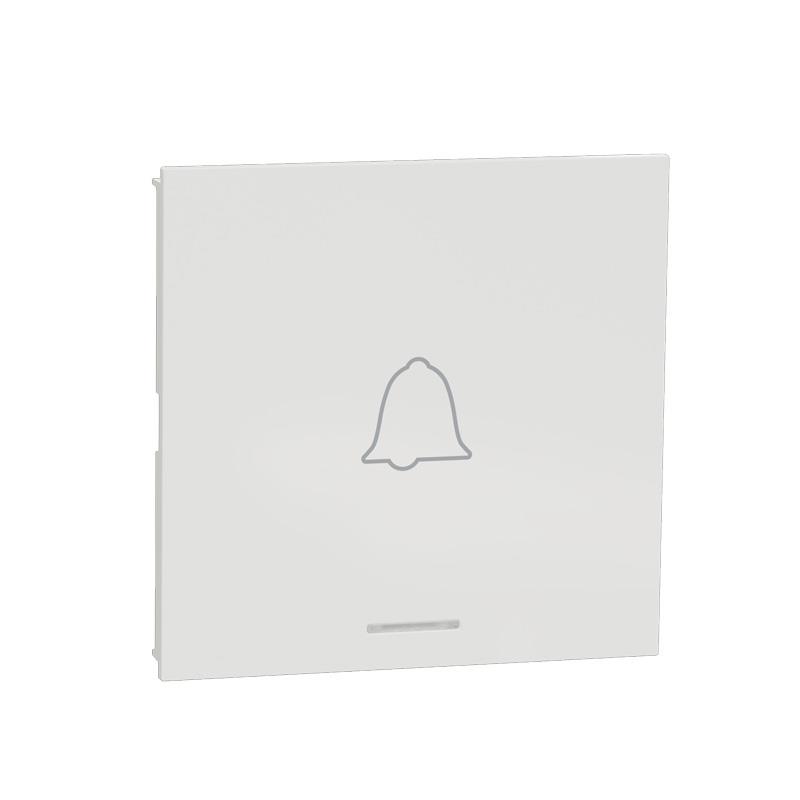

Nút nhấn chuông 10A, size E (3S) cắm nhanh M3T31_HBP_WE : AvatarOn A
- Mã sản phẩm: M3T31_HBP_WE
- Thương hiệu:Dòng AvatarOn A (Schneider)
- Bảo hành: 12 tháng
- Loại: Công tắc
Quý khách hàng có nhu cầu mua số lượng lớn thiết bị điện thương hiệu Schneider, vui lòng gửi yêu cầu báo giá qua email sale@thiebidiendgp.vn hoặc báo giá trực tiếp trên website để nhận chiết khấu ƯU ĐÃI TỐT NHẤT trong tháng 9.
Thông số kỹ thuật
Bell Switch, Avataron A, 10A 250V, E sized H, White
range of product | ||
product or component type |
Bell press switch |
|
load type |
Resistive load |
|
colour tint |
White (WE) |
|
device presentation |
Complete product |
|
rated current |
10 A at 250 V AC 50 Hz |
|
switch application |
Bell switch |
|
clamping connection capacity |
2 x 1.5 mm² for solid cable(s) |
|
connections - terminals |
Screwless type terminals |
|
local signalling |
Fluorescent (white) |
|
material |
PC: dolly |
|
device mounting |
Flush |
|
width |
70.1 mm |
|
height |
69.3 mm |
|
depth |
33 mm |
|
embedding depth |
22 mm |
|
IP degree of protection |
IP20 |
|
maximum ambient air temperature for operation |
45 °C |
|
ambient air temperature for storage |
-5…60 °C |
|
relative humidity |
0…95 % |
|
operating altitude |
<= 2000 m |
|
standards |
IEC 60669-1 |
|
product certifications |
IEC |
