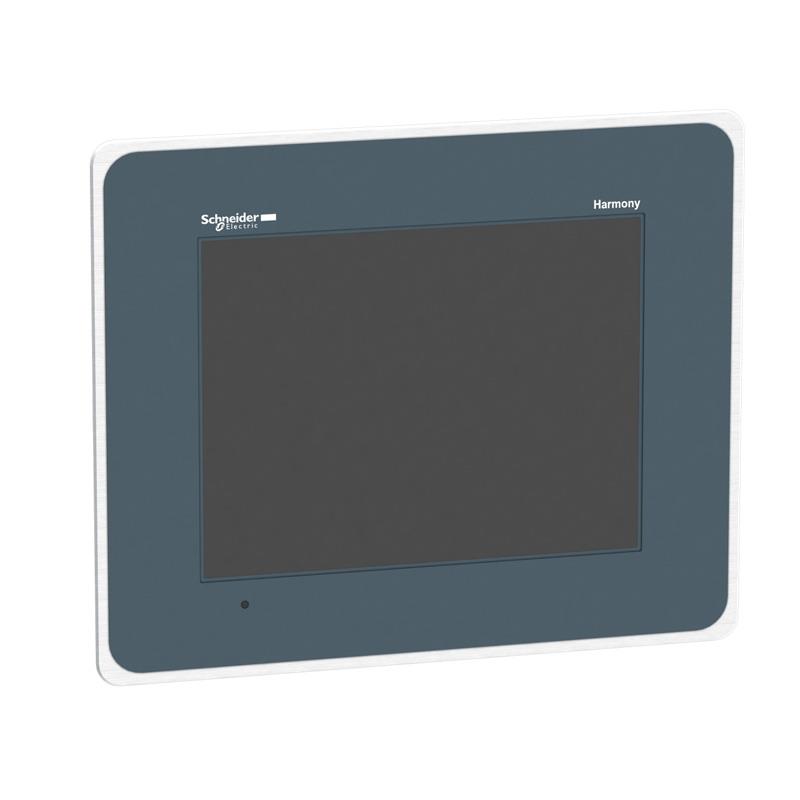

HMIGTO5315 : Màn hình cảm ứng nâng cao điều khiển 640 x 480 pixels Advanced touchscreen panel stainless 640 x 480 pixels VGA- 10.4" TFT - 96 MB

Schneider
49,256,350 VND
75,779,000 VND
-35%
Giá sản phẩm rẻ hơn khi mua số lượng nhiều (vui lòng thêm vào báo giá để nhận báo giá hoặc qua email: sale@thietbidiendgp.vn)
Tags: Màn hình HMI mua ở đâu, báo giá, giá rẻ, giá tốt, chính hãng, quận 2, quận 9, thủ đức, tại tphcm
ƯU ĐÃI TRONG THÁNG 07
Quý khách hàng có nhu cầu mua số lượng lớn thiết bị điện thương hiệu Schneider, vui lòng gửi yêu cầu báo giá qua email sale@thiebidiendgp.vn hoặc báo giá trực tiếp trên website để nhận chiết khấu ƯU ĐÃI TỐT NHẤT trong tháng 07.

Thông số kỹ thuật

Main

range of product

Harmony GTO


product or component type

Advanced touchscreen panel


display colour

65536 colours


display size

5.7 inch


supply

External source


operating system

Harmony


battery type

Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s)


provided equipment

1 protective cover



Complementary

terminal type

Touchscreen display


display type

Backlit colour TFT LCD


display resolution

320 x 240 pixels QVGA


touch sensitive zone

1024 x 1024


touch panel

Resistive film, 1000000 cycles


backlight lifespan

50000 hours white at 25 °C


brightness

16 levels - control by touch panel
16 levels - control by software


character font

Taiwanese (traditional Chinese)
Japanese (ANK, Kanji)
Chinese (simplified Chinese)
ASCII
Korean


[Us] rated supply voltage

24 V DC


supply voltage limits

19.2…28.8 V


inrush current

30 A


maximum power consumption in W

6.5 W when power is not supplied to external devices
4.5 W when backlight is OFF
5 W when backlight is dimmed
10.5 W


local signalling

Status LED green, steady for offline
Status LED green, steady for operating
Status LED orange, flashing for software starting up
Status LED red, steady for power supply (ON)
Status LED clear, faded for power supply (OFF)
COM2 LED yellow, steady for data is being transmitted
COM2 LED yellow, faded for no data transmission
SD card LED green, steady for card is inserted
SD card LED green, faded for card is not inserted or is not being accessed


software designation

Vijeo Designer configuration software >= V6.1


memory description

Flash EPROM, 96 MB


data backed up

512 kB internal RAM (SRAM)


data storage equipment

SD card, <= 32 GB
SDHC card, <= 32 GB


downloadable protocols

Schneider Electric Modicon Modbus
Schneider Electric Modicon Uni-TE
Schneider Electric Modicon Modbus Plus
Schneider Electric Modicon FIPWAY
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols
Schneider Electric Modicon Modbus TCP


integrated connection type

COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI
Ethernet RJ45, interface: 10BASE-T/100BASE-TX
Ethernet RJ45, interface: IEEE 802.3
USB 2.0 type A
USB 2.0 type mini B


product mounting

Flush mounting


fixing mode

By 8 nuts
By 4 L brackets


front material

Stainless steel 304


enclosure material

PPT


type of cooling

Natural convection


width

213.5 mm


height

181 mm


depth

59.5 mm


net weight

1.2 kg



Environment

standards

IEC 61000-6-2
UL 508
EN 61131-2


product certifications

KCC
CE
CULus
C-Tick


ambient air temperature for operation

0…55 °C


ambient air temperature for storage

-20…60 °C


relative humidity

10…90 % without condensation


operating altitude

< 2000 m


IP degree of protection

IP20 (rear panel) conforming to IEC 60529
IP66K (front panel) conforming to IEC 60529
IP66K (front panel) conforming to DIN 40050-9


NEMA degree of protection

NEMA 4X front panel (indoor use)


shock resistance

147 m/s² 3 chocks in each direction X, Y and Z conforming to EN/IEC 61131-2


vibration resistance

3.5 mm (f = 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to EN/IEC 61131-2
1 gn (f = 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to EN/IEC 61131-2


resistance to electrostatic discharge

6 kV contact discharge conforming to IEC 61000-4-2 level 3

HMIGTO5315 : Màn hình cảm ứng nâng cao điều khiển 640 x 480 pixels
