Hình ảnh, màu sắc có thể chưa được cập nhật đúng, vui lòng xem kỹ mã hàng và mẫu mã.

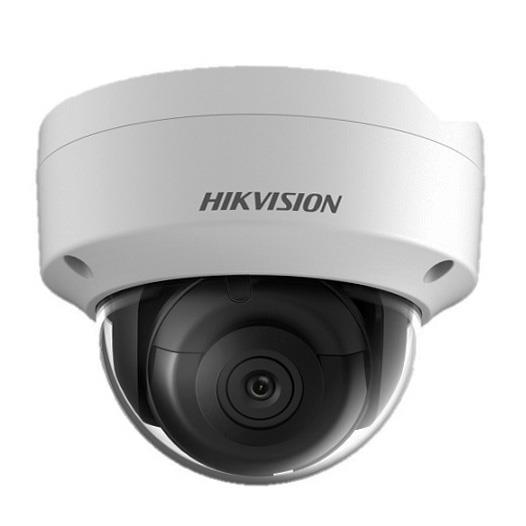

Camera IP Dome hồng ngoại 8.0 Megapixel HIKVISION
6,320,000 VND
6,320,000 VND
Giá sản phẩm rẻ hơn khi mua số lượng nhiều (vui lòng thêm vào báo giá để nhận báo giá hoặc qua email: sale@thietbidiendgp.vn)
- Mã sản phẩm: DS-2CD2183G0-I
- Thương hiệu:Camera IP H.265 + (mới) series 2xx3 (HIKVISION)
- Bảo hành: 12 tháng
- Loại: Camera dạng Dome
Thông số kỹ thuật
Camera | ||
---|---|---|
Image Sensor: | 1/2.5" Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR | |
Shutter time: | 1/3 s to 1/100,000 s | |
Slow shutter: | Support | |
Lens: | 2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° 4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95° 6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59° 8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53° | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR | |
Focus: | Fixed | |
Compression Standard | ||
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate: | 256Kbps~16Mbps | |
Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2/PCM | |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
Triple Streams: | Yes | |
Image | ||
Max. Image Resolution: | 3840 × 2160 | |
Frame Rate: | 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Enhancement: | BLC/3D DNR/BLC | |
Image Settings: | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software | |
Target Cropping: | No | |
ROI: | 1 fixed region for main stream and sub-stream | |
Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by alarm input (-S) | |
Network | ||
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering | |
System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
Interface | ||
Audio: | with -S model:1 input (line in), 1 output (line out), mono sound, terminal block | |
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
Alarm: | with -S model:1 input, 1 output (max. 12 VDC, 30 mA), terminal block | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes | |
Audio | ||
Environment Noise Filtering: | Support(-S) | |
Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz | |
Smart Feature-set | ||
Behavior Analysis: | Line crossing detection, intrusion detection | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
Recognition: | Face Detection | |
General | ||
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) | |
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
Power Consumption: | 12 VDC, 0.6 A, max. 7.5W PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 9W | |
Impact Protection: | IK10 | |
Weather Proof: | IP67 | |
IR Range: | Up to 30m | |
Dimensions: | Camera: Φ 111 mm × 82.4 mm (Φ 4.4" × 3.2") Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3") | |
Weight: | Camera: 500 g (1.1 lb.) |
