| Model Parameters |
| Model |

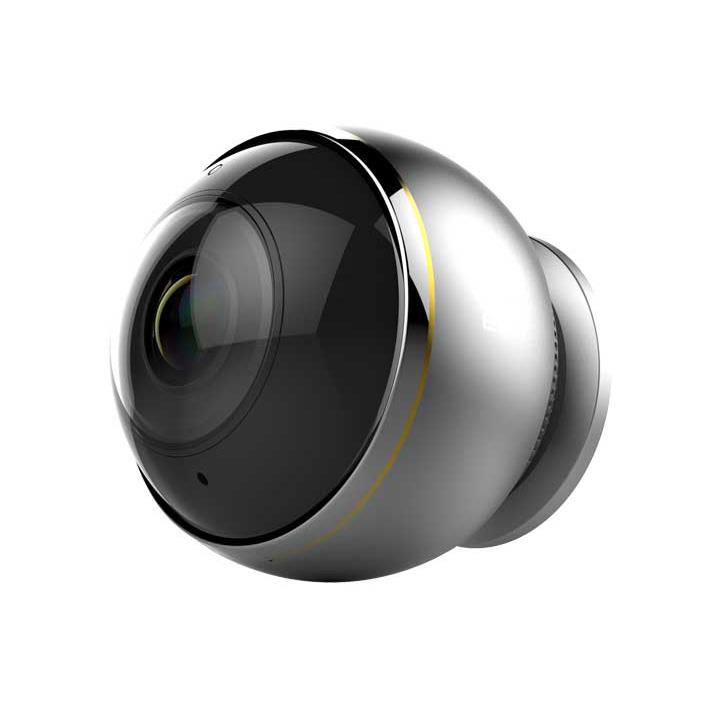

CS-CV346-A0-7A3WFR |
| Camera |
| Image Sensor |
3 Megapixel 1/2.8” Progressive Scan CMOS |
| Minimum Illumination |
0.01 lux @(F2.2,AGC ON), 0 lux with IR |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
1.2mm@ F2.2, Horizontal angle: 180° Diagonal angle: 180° |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Progressive WDR |
| Compression |
| Video Compression |
H.264 |
| H.264 Type |
Main profile |
| Video Bit Rate |
HD, Balanced and Smooth. Adaptive bit rate |
| Image |
| Max. Resolution |
1344×1344 |
| Image setting |
Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio) |
| BLC |
Support |
| Network |
| Storage |
Support Micro SD card (Max. 128G) |
| Smart Alarm |
Motion detection |
| Wi-Fi Pairing |
SmartConfig (Wi-Fi One-Key Configuration) |
| Protocol |
EZVIZ cloud proprietary protocol |
| Interface Protocol |
EZVIZ cloud proprietary protocol |
| General Features |
Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark |
| Minimum Network Requirements |
2M |
| Wi-Fi |
| Standard |
IEEE802.11a/b/g/n/ac |
| Frequency Range |
2.412GHz ~ 2.462GHz/5.15GHz ~ 5.35GHz/ 5.725GHz ~ 5.825GHz |
| Channel Bandwidth |
Supports 20/40/80MHz |
| Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps |
| General |
| Operating Conditions |
-30°C ~ 60°C, Humidity 95% or less (non-condensing) |
| Power Supply |
DC 5V ±5% |
| Power Consumption |
Max. 8W |
| IR Range |
Max. 7.5meters |
| Product Dimensions |
70mm x 70mm x 70.6mm |
| Packaging Dimensions |
109.5mm x 109.5mm x 123mm |
| Weight |
222g |
