Khóa điện từ, chịu lực lên đến 800kg. Nguồn 12VDC / 24VAC

HIKVISION
Giá: liên hệ
Giá sản phẩm rẻ hơn khi mua số lượng nhiều (vui lòng thêm vào báo giá để nhận báo giá hoặc qua email: sale@thietbidiendgp.vn)
Tags: Phụ kiện HIKVISION mua ở đâu, báo giá, giá rẻ, giá tốt, chính hãng, quận 2, quận 9, thủ đức, tại tphcm

Thông số kỹ thuật

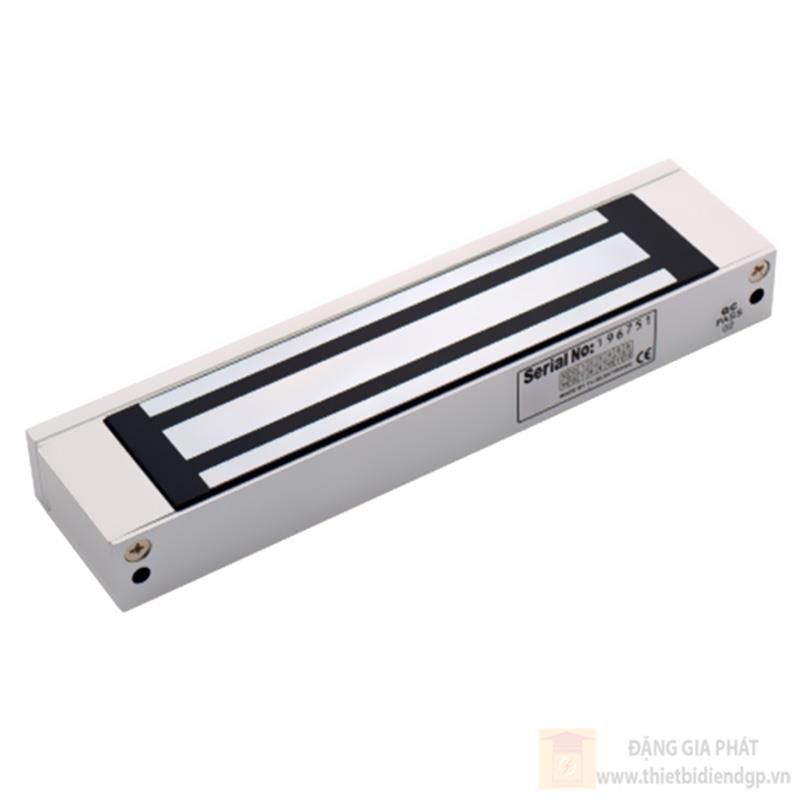

Khóa điện từ HIKVISION DS-K4H250S

-Khóa điện từ chịu lực lên đến 300kg.

-Nguồn điện cung cấp: 12VDC (500mA)/ 24VAC (250mA).

-Trọng lượng: 2.1 kg.

-The magnetic lock supports static linear thrust of 300kg;

-The power supply can be customized to be 12VDC or 24VDC, and the default voltage is 12VDC.

-It is equipped with internal voltage dependent resistor (MOV).

-It is applied to wooden door, glass door, metal door and fireproof door.

-LED indicator displays the status of door lock;

-Signal output of door lock status (NONCCOM).

-Anti-residual magnetism design.

-Abrasion-proof materials.

-The shell is made up ofaldural and is hard anodizing electroplated.

-No mechanical failure, and the magnetic lock works by electromagnetism force.

Đặc tính kỹ thuật

Dimension of Lock Body 240 x 49 x 25.5mm
Dimension of Armature Plate 180 x 38 x 11mm
Maximum Thrust 300kg Linear Thrust
Input Voltage 12VDC/ 24VAC
Working Current 12V/500mA, 24V/250mA
Signal Output Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO
Output While Locking and NC Output While Unlocking
LED Indicator Red (Door is Unlocked), Green (Door is Locked)
Suitable Door Wooden Door, Glass Door, Metal Door, Fireproof Door
Working Temperature -10°C to +55°C (14°F to 131°F)
Working Humidity 0 to 95% (Relative Humidity)
Shell Hard Anodizing Electroplating Operated
Lock Body Eco-friendly Zinc with Electroplating Operated
Armature Plate Eco-friendly Zinc withElectroplating Operated
Weight 2.1kg
