Bộ mở rộng ổ cứng HIKVISION

HIKVISION
Giá: liên hệ
Giá sản phẩm rẻ hơn khi mua số lượng nhiều (vui lòng thêm vào báo giá để nhận báo giá hoặc qua email: sale@thietbidiendgp.vn)
Tags: Bộ lưu trữ mở rộng mua ở đâu, báo giá, giá rẻ, giá tốt, chính hãng, quận 2, quận 9, thủ đức, tại tphcm

Thông số kỹ thuật

- Bộ mở rộng 24 ổ cứng dành cho DS-A80624S và DS-A81016S.

- Dung lượng lưu trữ tối đa: 6 TB mỗi ổ cứng.

- Chuẩn giao tiếp ổ cứng: SATA.

- Hỗ trợ hot-swapping.

- Mở rộng lưu trữ nhanh chóng và độ tin cậy cao.

- Giúp giảm chi phí.

- Kích thước: 486 × 173 × 760 mm.

- Khối lượng: 41 kg.

Đặc tính kỹ thuật

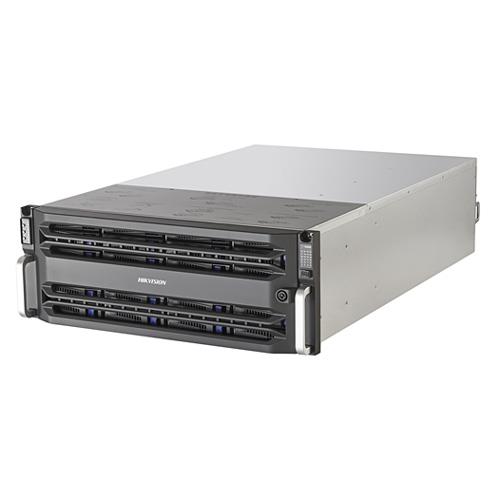

Model DS-AJ7824S
Controller
Processor 1 Controller
HDD
HDD Slot 24
Interface/Capacity SATA
Hot-swapping Supported
Interfaces
MiniSAS interface 3 SAS interfaces(12Gbps), 2 (Upper-level) & 1 (Lower-level)
General
Applicable Models DS-A81016S,DS-A80624S
Power supply Redundant (1+1)
Comsumption ( with HDDS ) ≤ 550 W (with max. hard disks)
 Environment Temperature Working Temperature:5°C ~ 40°C (41°F ~ 104°F); Storage Temperature:-20°C ~ +70°C (-4°F ~ +158°F)
 Environment humidity Working Humidity:20% ~ 80% (With no icing and condensation); Storage Humidity:5% ~ 90%RH (With no icing and condensation)
Chassis 4U Chassis
Dimensions (W x H x D) 486 × 173 × 760mm
Weight (without HDDs) 41 kg
Model
Model:   DS-A81016S
Performance
Direct Streaming Mode:video(2Mpbs)+Picture:   320-ch recording + playback
IPSAN:   180-ch recording + playback
Controller
Processor:   One-controller (64-bit multi-core processor)
Cache:   4 GB ( extendable to 32 GB )
HDD
HDD Slot:   16
Interface/Capacity:   SATA/1TB,2TB,3TB,4TB,6TB,8TB
Hot-swapping:   Supported
RAID:   RAID0,1,3,5,6,10,50.VRAID,JBOD,Hot-spare
Interfaces
Alarm interface:   1
Data network interface:   3, 1000M Ethernet interface
Management network interface:   1, 1000M Ethernet interface
MiniSAS interface:   Supported
COM:   1
USB3.0:   2
VAG:   None
HDMI:   2
Network
Protocol:   iSCSI,RTSP,ONVIF,PSIA
General
Power supply:   Gold-metal redundant power supply
Comsumption ( with HDDS ):   Working: ≤308W ( 967BTU with 16 HDDs) Rated: ≤550W
Environment Temperature:   Working: +5°C to +40°C Storing:-20°C to +70°C
Environment humidity:   Working: 20% to 80%RH (non-condensing/frozen) Storing:5% to 90%RH (non-condensing/frozen)
Chassis:   3U (19-inch height)
Dimensions (W x H x D):   440 x 132 x 495 mm (17.3 x 5.2 x 19.5 in)
Weight (without HDDs):   ≤ 20 Kg (44.1 lb)
