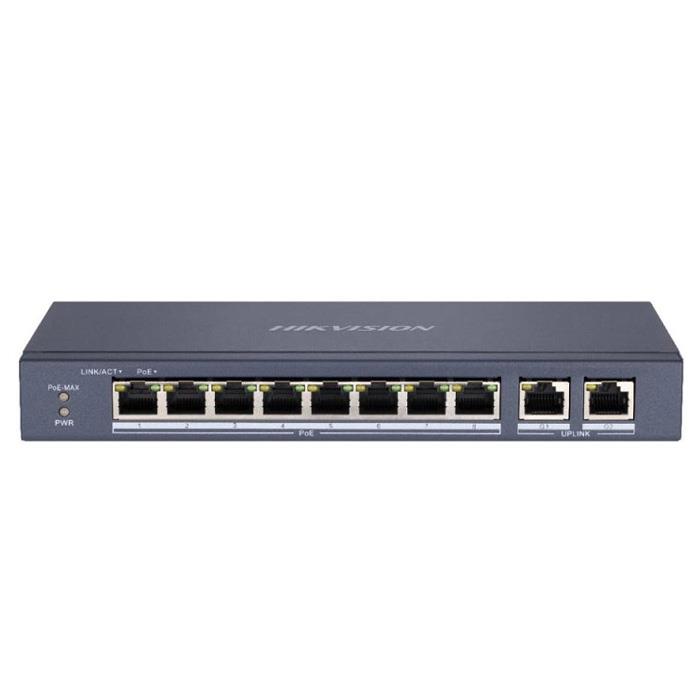

8-port 10/100Mbps Unmanaged PoE Switch HIKVISION

1,900,000 VND

Giá tốt hơn khi mua số lượng nhiều (vui lòng thêm vào báo giá để nhận báo giá hoặc qua email: sale@thietbidiendgp.vn)

Tags: Switch cấp nguồn mua ở đâu, báo giá, giá rẻ, giá tốt, chính hãng, quận 2, quận 9, thủ đức, tại tphcm

XEM BẢNG GIÁ HIKVISION 2024

Số lượng

Thông số kỹ thuật

- 8 × 10/100Mbps PoE ports, and 2 × Gigabit RJ45 port.

- IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).

- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.

- 6 KV surge protection for PoE ports.

- Up to 300 m long-range transmission.

- Wire-speed forwarding.

- Store-and-forward switching.

- Solid high-strength metal shell.

- Reliable fan-free design.

Đặc tính kỹ thuật

Network parameters
Number of ports	8 × 10/100Mbps PoE ports, 2 × Gigabit RJ45 ports
Port type	RJ45, full duplex, MDI / MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Switching method	Store-and-forward switching
Work mode	Standard mode (default), Extend mode
Ports for long-distance transmission	Ports 1 to 8
MAC address table	16K
Switching speed	5.6 Gbps
Packet Forwarding Rate	4.1664 Mpps
Internal cache	4 Mbits
Power over PoE
PoE standard	Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE port	Ports 1-8
Max. port capacity	Ports 1 to 8: 30 W
PoE Power Budget	60 watts
Dial function
Long distance transmission of information	Ports 1 to 8: up to 300 m
General
Shell	Metal material, fan-free design
Net weight	0.555 kg
Dimensions	217.6 mm × 103.35 mm × 27.8 mm
Working temperature	-10 to +40 ° C
Storage temperature	-40 to +85 ° C
Working humidity	5% to 95% (non-condensing)
Storage humidity	5% to 95% (non-condensing)
Nutrition	DC 48 V, 0.8 A
Standby power consumption	less than 5 W
Max. power consumption	65W
Power supply	65W

Đặc tính kỹ thuật

Model	DS-3E0109P-E/M(B)
Network parameters
Port number	8 x 100M PoE ports, 1 x 100M Ethernet port.
Port type	RJ45 port, Full duplex, MDI/MDI-X adaptive
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type	Store-and-forward switching
Ports with high priority	1 to 2 ports
Ports for long-distance transmission	1 to 8 ports
MAC address table	2K
Exchange capacity	1.8 Gbps
Packet forwarding rate	1.339 Mpps
Internal cache	1 Mbits
PoE power supply
Power supply standard	IEEE 802.3af, IEEE 802.3at
Power supply cable core	Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE port	1 to 8
Max. port power	30W
Max. machine power	60W
Mechanical structure
Shell	Metal material, fan-free design
weight	0.35 kg (0.77 lb)
Dimensions (L × H × D)	170 mm × 27.6 mm × 93.1 mm (6.7inch × 1.1inch × 3.7inch)
Environment
Operating temperature	0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
Storage temperature	–40 ˚C to 85 ˚C (–40 ˚F to 185 ˚F)
Relative humidity	5% to 95% (no condensation)
Power supply
Power supply specification	48 VDC, 1.35 A
