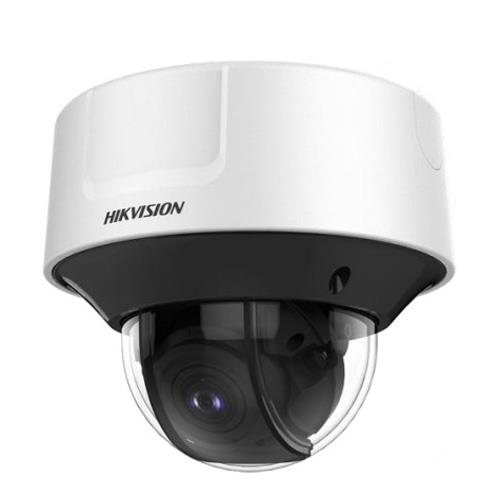

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD5526G1-IZHS (8-32 mm)

HIKVISION
Giá: liên hệ
Giá sản phẩm rẻ hơn khi mua số lượng nhiều (vui lòng thêm vào báo giá để nhận báo giá hoặc qua email: sale@thietbidiendgp.vn)
Tags: Camera dạng Dome mua ở đâu, báo giá, giá rẻ, giá tốt, chính hãng, quận 2, quận 9, thủ đức, tại tphcm

Thông số kỹ thuật

- Cảm biến hình ảnh: 1/1.8 inch Progressive Scan CMOS.

- Độ phân giải camera ip: 1920 × 1080 @ 50fps.

- Ống kính: 8 to 32 mm.

- Chuẩn nén hình ảnh: H.265, H.265+, H.264, H.264+.

- Độ nhạy sáng: Color: 0.002 Lux @ (F1.2, AGC ON).

- Tầm quan sát hồng ngoại: 50 mét.

- Chống ngược sáng thực 140dB WDR.

- Chức năng giảm nhiễu số 3D DNR.

- Hỗ trợ 5 luồng dữ liệu.

- Hỗ trợ Heater dùng trong kho lạnh.

- Khe cắm thẻ nhớ microSD/SDHC/SDXC lên đến 256 GB.

- Hỗ trợ báo động Alarm I/O.

- Hỗ trợ tính năng chống phản xạ hồng ngoại vào mặt kính.

- Hỗ trợ tính năng cảnh báo thông minh: Vượt hàng rào ảo, đột nhập khu vực cấm, phát hiện hành lý vô chủ, phát hiện di dời vật thể, cảnh báo thay đổi hình ảnh, cảnh báo mất nét, nhận diện chụp hình khuôn mặt, đếm người, đếm vật thể...

- Tiêu chuẩn chống bụi nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

Đặc tính kỹ thuật

Model DS-2CD5526G1-IZHS
Camera
Image Sensor 1/1.8 inch Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR 140 dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
IR Range Up to 50 m
Lens
Lens Type Motorized lens, 8 to 32 mm
FOV 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
Focus Auto, semi-auto, manual
Aperture 8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range
Auto-Iris P-iris
Lens Mount Integrated
Video
Max. Resolution 1920 × 1080
Video Stream 5 defined streams and up to 5 custom stream
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
Scalable Video Coding (SVC) H.265 and H.264 support
Audio
Environment Noise Filtering Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
User/Host Up to 32 users, 3 levels: administrator, operator and user
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Target Cropping Yes
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
Alarm 1 input, 1 output (max. 24 VDC/VAC, 1A max.)
Audio 1-ch 3.5 mm input (line in), 1-ch 3.5 mm output (line out), mono
Video Output 1Vp-p composite output (75 Ω/CVBS), only for adjustment
Communication 1 RJ45 10M/100M/1000M Ethernet port
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Smart Feature-Set
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Face detection: detects faces and upload images
Scene change detection, audio exception detection, defocus detection
Statistics Counting
General
General Function Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
Power Supply 12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)
Startup and Operating Conditions -40°C to 65°C (-40°F to 149°F), humidity 95% or less (non-condensing)
Heater Yes
Material Metal
Protection IP67, IK10
Dimensions Φ162 × 140.3 mm
Weight 1.4kg
Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD5526G1-IZHS (8-32 mm)

Camera
Image Sensor:   1/2.5" progressive scan CMOS
Effective Pixels:   2560(H)×1440(V)
Signal System:   PAL/NTSC
Minimum Illumination:   Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:   Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:   Auto/Manual
BLC:   ON/OFF
HLC:   Support
Smart defog:   Support
WDR:   120dB
Shutter Time:   1/1 to 1/30,000s
Day& Night:   ICR
Digital Zoom:   16×
Auto Focus:   Auto / Semi-automatic / Manual
Lens
Focal Length:   4.8 mm to 120 mm, 25× optical
Zoom Speed:   Approx. 3.6 s (optical lens, wide-tele)
Angle of View:   Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele)
Minimum Working Distance:   10 to 1500mm (wide-tele)
Aperture Range:   F1.6 to F3.5
Pan & Tilt
Pan Range:   360°endless
Pan Speed:   Configurable, from 0.1°/s to 80°/s,  Preset speed: 80°/s
Tilt Range:   -15°-90° (Auto Flip )
Tilt Speed:   Configurable, from 0.1°/s to 80°/s,  Preset speed: 80°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   300
Patrol:   8 patrols, up to 32 presets for each patrol
Pattern:   4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:   Support
Park Action:   Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:   ON/OFF
Infrared
IR irradiation distance:   100m
IR irradiation angle:   Adjustable by zoom
Input & Output
Audio Input:   1-ch audio input
Audio Output:   1-ch audio output
Network
Ethernet:   10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:   2560 × 1440
Main Stream:   50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:   50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:   50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression:   Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:   Support 4 areas with adjustable levels
Audio Compression:   G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols:   IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:   Up to 20 users
Three-Stream:   Support
Mini SD Card:   Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures:   User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Client GUI
Client:   iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
General
Power Supply:   12VDC, PoE+
Power Consumption:   Max.: 18W (IR light 7W Max.)
Working Temperature/Humidity:   Outdoor: -30°C to 65°C (-22°F to 149°F) Humidity:≤ 90%
Protection Level:   IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Material:   ADC 12, PC+10% GF
Dimensions:   Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
Weight (approx.):   Approx. 2.45kg (5.40lb)
Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD5526G1-IZHS (8-32 mm)
