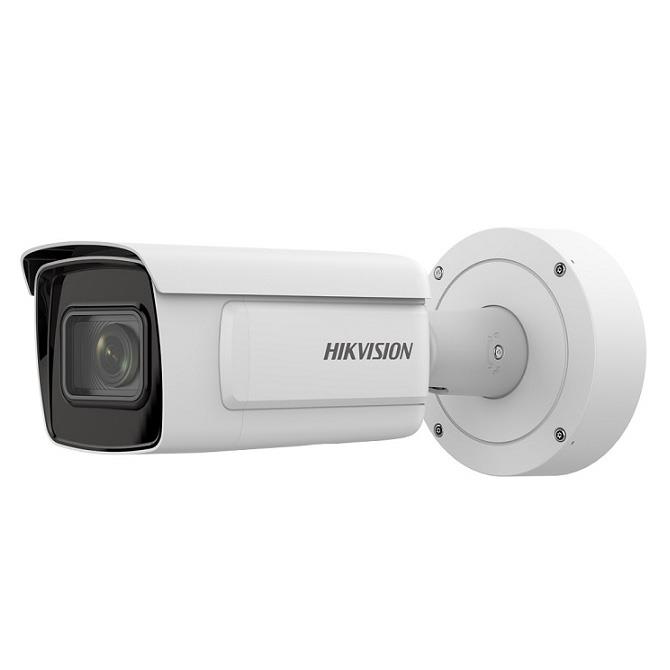

Camera IP nhận diện biển số xe HIKVISION (2.8~12 mm) iDS-2CD7A26G0/P-IZHSY

Giá: liên hệ
Giá sản phẩm rẻ hơn khi mua số lượng nhiều (vui lòng thêm vào báo giá để nhận báo giá hoặc qua email:
Tags: Camera Smart IP (chuyên dụng) mua ở đâu, báo giá, giá rẻ, giá tốt, chính hãng, quận 2, quận 9, thủ đức, tại tphcm

Thông số kỹ thuật

- Cảm biến hình ảnh: 1/1.8 inch Progressive Scan CMOS.

- Độ phân giải camera ip: 2.0 Megapixel.

- Ống kính zoom: 2.8 to 12 mm.

- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.

- Tầm quan sát hồng ngoại: 50 mét.

- Hình ảnh màu sắc ở môi trường ánh sáng yếu với công nghệ DarkFighter.

- Chống ngược sáng thực 140dB.

- Hỗ trợ BLC, HLC, 3D DNR, Defog, EIS, chống cong ảnh.

- Tích hợp khe cắm thẻ nhớ micro SD/SDHC/SDXC, lên đến 256 GB.

- Tính năng thông minh (Sử dụng thuật toán Deep Learning): Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

- Nhận diện biển số xe, thuộc tính xe (loại xe, màu xe,…).

- Chống ăn mòn NEMA 4X (NEMA 250-2018).

- Tiêu chuẩn chống bụi nước: IP67.

- Tiêu chuẩn chống va đập: IK10.

Đặc tính kỹ thuật

Model iDS-2CD7A26G0/P-IZHSY
Image Sensor 1/1.8 inch Progressive Scan CMOS
Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR 140 dB
IR Range 50 m (2.8 to 12 mm)
Smart Supplement Light Yes
Lens Type & FOV 2.8 to 12 mm, horizontal FOV: 107.3° to 39.8°, vertical FOV: 55.9° to 22.3°, diagonal FOV: 130.1° to 45.7°
Aperture 2.8 to 12 mm: F1.2 to 2.5
Blue Glass Module Blue glass module to reduce ghost phenomenon
P-Iris Yes
Max. Resolution 1920 × 1080
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
Scalable Video Coding (SVC) H.265 and H.264 support
Region of Interest (ROI) 4 fixed regions for each stream
Environment Noise Filtering Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Type Mono sound
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Smart IR The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure
Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In, Triggered by Video
Target Cropping Yes
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Image Parameters Switch Yes
Alarm 2 inputs, 2 outputs (max. 24VDC, 1A)
Audio 1 input (line in), 1 output (line out), 3.5 mm connector
RS-485 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Video Output 1 Vp-p Composite Output(75 Ω/CVBS) (For debugging only)
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Communication 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Heater Yes
Wiegand 1 wiegand(CardID 26bit, SHA-1 26bit, Hik 34bit)
Smart Feature-Set
Basic Event Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Scene change detection, audio exception detection, defocus detection
Counting Yes
Premier Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag,
Road Traffic and Vehicle Detection Blocklist and allowlist: up to 10000 records
Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City
Street mode is recommended.)
General Function Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Power Supply 12 VDC ± 20%, three-core terminal block, reverse polarity protection; PoE: 802.3at, Type 2 Class 4
Startup and Operating Conditions 40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Material Aluminum alloy body
Protection IP67
Dimensions Ø144 × 347 mm
Weight 1920 g
Camera IP nhận diện biển số xe HIKVISION (2.8~12 mm)

Image Sensor:   1/2.5" progressive scan CMOS
Effective Pixels:   2560(H)×1440(V)
Signal System:   PAL/NTSC
Minimum Illumination:   Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:   Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:   Auto/Manual
HLC:   Support
Smart defog:   Support
WDR:   120dB
Shutter Time:   1/1 to 1/30,000s
Day& Night:   ICR
Digital Zoom:   16×
Auto Focus:   Auto / Semi-automatic / Manual
Focal Length:   4.8 mm to 120 mm, 25× optical
Zoom Speed:   Approx. 3.6 s (optical lens, wide-tele)
Angle of View:   Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele)
Minimum Working Distance:   10 to 1500mm (wide-tele)
Aperture Range:   F1.6 to F3.5
Pan & Tilt
Pan Range:   360°endless
Pan Speed:   Configurable, from 0.1°/s to 80°/s,  Preset speed: 80°/s
Tilt Range:   -15°-90° (Auto Flip )
Tilt Speed:   Configurable, from 0.1°/s to 80°/s,  Preset speed: 80°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   300
Patrol:   8 patrols, up to 32 presets for each patrol
Pattern:   4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:   Support
Park Action:   Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:   ON/OFF
IR irradiation distance:   100m
IR irradiation angle:   Adjustable by zoom
Input & Output
Audio Input:   1-ch audio input
Audio Output:   1-ch audio output
Ethernet:   10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:   2560 × 1440
Main Stream:   50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:   50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:   50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression:   Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:   Support 4 areas with adjustable levels
Audio Compression:   G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols:   IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:   Up to 20 users
Three-Stream:   Support
Mini SD Card:   Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures:   User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Client GUI
Client:   iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Power Supply:   12VDC, PoE+
Power Consumption:   Max.: 18W (IR light 7W Max.)
Working Temperature/Humidity:   Outdoor: -30°C to 65°C (-22°F to 149°F) Humidity:≤ 90%
Protection Level:   IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Material:   ADC 12, PC+10% GF
Dimensions:   Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
Weight (approx.):   Approx. 2.45kg (5.40lb)
Camera IP nhận diện biển số xe HIKVISION (2.8~12 mm)
