Màn hình màu chuông cửa IP

HIKVISION
Chú ý: Thương hiệu HIKVISION hiện tại chúng tôi tạm ngừng kinh doanh. Kính mong Quý khách hàng thông cảm.

HỖ TRỢ ĐẶT HÀNG/BÁO GIÁ Thứ 2 - Thứ 7 (7h30 - 17h)

THÔNG SỐ KỸ THUẬT

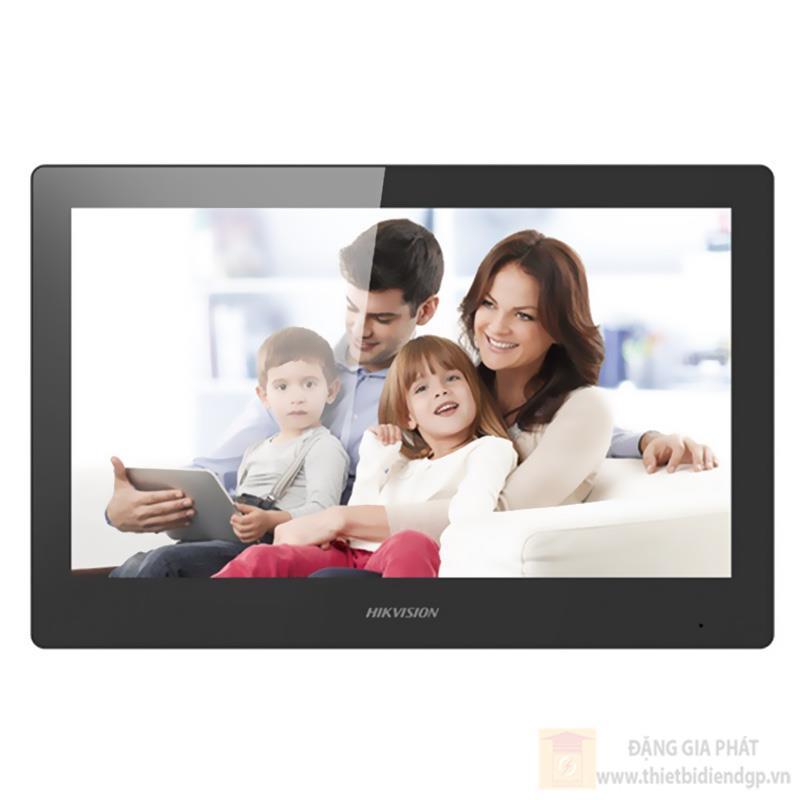

Màn hình chuông cửa IP với thiết kế đẹp, sang trọng
Màn hình 10.1-inch cảm ứng màu, độ phân giải 1024 × 600
Hỗ trợ nguồn PoE tiêu chuẩn
Hỗ trợ thẻ nhớ lưu ảnh/tin nhắn
8 cổng alarm input,2 cổng alarm output, 1 cổng 485
Hỗ trợ kết nối Hik-connect nhận cuộc gọi, đàm thoại, mở cửa từ xa,…
Hỗ trợ kết nối wifi
Khả năng mở rộng thêm 5 màn hình phụ và chuông cửa phụ.

Đặc tính kỹ thuật

System Parameters
Operation System Embedded Linux Operation System
Flash 32MB
Memory 128MB
Display Parameters
Display Screen 10.1-inch colorful TFT LCD
Display Resolution 1024 x 600
Operation Method Capacitive touch screen
Audio Parameters
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate 64 Kbps
Audio Quality Noise Suppression and Echo Cancellation
Network Parameters
Wired network 10/100 Mbps self-adaptive network
Wireless network Wi-Fi 802.11b/g/n
Network Protocol TCP/IP, SIP, RTSP
Network interface 1 RJ-45 10/100 Mbps self-adaptive
Device Interfaces
Relay Output 2
Alarm Input 8-ch alarm inputs
RS-485 1
TF Card (micro SD card) Max to 32 G, SD 2.0 or lower version
General
Power Supply IEEE802.3af standard PoE, 12VDC/1A
Power Consumption ≤6W
Working Humidity 10% to 90%
Working Temperature -10° C to + 55° C (14° F to 131° F)
Dimensions 254 x 166 x 14.7 mm
Weight 1118g
