Camera IP thân quay quét 2MP HIKVISION

HIKVISION
3,560,000 VND
3,560,000 VND
Giá sản phẩm rẻ hơn khi mua số lượng nhiều (vui lòng thêm vào báo giá để nhận báo giá hoặc qua email: sale@thietbidiendgp.vn)
Tags: Camera dạng thân mua ở đâu, báo giá, giá rẻ, giá tốt, chính hãng, quận 2, quận 9, thủ đức, tại tphcm

Thông số kỹ thuật

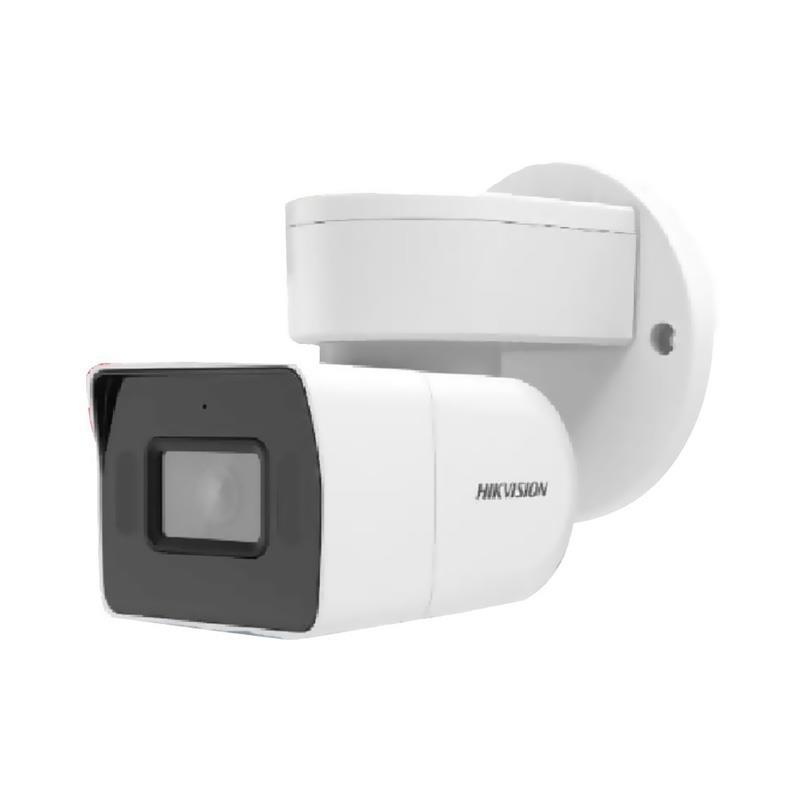

Camera IP thân quay quét 2MP: DS-2CD1P23G0-I
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Horizontal: 0°~200°, vertical: -10°~55°
Power-off Memory Yes
Presets Yes
Lens
Lens Type & FOV 4 mm: Horizontal FOV: 87.3°, vertical FOV: 46.3°, diagonal FOV: 104.2° 6 mm: Horizontal FOV: 53.9°, vertical FOV: 28.8°, diagonal FOV: 62.8° 8 mm: Horizontal FOV: 40.9°, vertical FOV: 22.5°, diagonal FOV: 47.4° 12 mm: Horizontal FOV: 25.4°, vertical FOV: 14.4°, diagonal FOV: 29.1°
Aperture F1.6
Lens Mount M12
Illuminator
IR Range Up to 40 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 1920 × 1080
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50 Hz: 1 fps (1280 × 720, 640 × 360)
Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Yes
H.265+ Yes
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream
Audio
Environment Noise Filtering Yes
Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G.711a/G.711u/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)/16~64Kbps(AAC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, IGMP, QoS, UDP, Bonjour, SSL/TLS, 802.1x, UPnP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+,Firefox 52.0+
Smart IR Yes
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Audio 1 built-in microphone
Hardware Reset Yes
Communication Interface 1 10M/100M self-adaptive Ethernet port
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
General
Linkage Method Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture
General Function Heartbeat, mirror, password protection, watermark, IP address filtering, flash log, pixel counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C. Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C. Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25% ; reverse polarity protection PoE: 802.3at, Class 4
Power Consumption and Current 12 VDC, 0.8 A, max. 9.6 W PoE: 802.3at, 42.5 V~57 V, 0.28 A~0.21 A, max. 12 W
Power Interface Φ5.5 mm coaxial power plug
Camera Dimension 84.4 × 65.3 × 125.4 mm (3.32" × 2.57" × 4.94")
Camera Weight Approx. 698 g (1.87 lb.)
Camera
Image Sensor:   1/3" progressive scan CMOS
Effective Pixels:   1920(H)x1080(V)
Signal System:   PAL/NTSC
Minimum Illumination:   Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:   Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:   Auto/Manual
HLC:   Support
WDR:   120dB
Shutter Time:   50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
Day& Night:   ICR
Digital Zoom:   16×
Privacy Masking:   24 privacy masks programmable
Auto Focus:   Auto / Semi-automatic / Manual
Lens
Focal Length:   2.8 to 12mm, 4× optical zoom
Zoom Speed:   Approx. 2s (optical lens, wide-tele)
Angle of View:   Horizontal field of view: 109° to 34° (Wide-Tele) Vertical field of view: 57° to 19° (Wide-Tele) Diagonal field of view: 135° to 39° (Wide-Tele)
Minimum Working Distance:   10 to 1500mm (wide-tele)
Aperture Range:   F1.6 to F2.7
Pan & Tilt
Pan Range:   0° to 330°
Pan Speed:   Configurable, from 0.1°/s to 100°/s,  Preset speed: 100°/s
Tilt Range:   Tilt: 0°~90°
Tilt Speed:   Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   300
Power-off Memory:   Support
Infrared
IR irradiation distance:   20m
IR irradiation angle:   Adjustable by zoom
Input & Output
Audio Input:   1-ch audio input
Audio Output:   1-ch audio output
Network
Ethernet:   10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:   1920×1080
Main Stream:   50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:   50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:   50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression:   Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:   Support 2 areas with adjustable levels
Audio Compression:   G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode:   OFF/Audio input/Audio output
Protocols:   IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:   Up to 20 users
Three-Stream:   Support
Mini SD Card:   Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host Level:   Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:   User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Hik-Connect:   Support
General
Power Supply:   12 VDC & PoE
Power Consumption:   Max.: 12 W (Max. 3.9 W for IR)
Working Temperature/Humidity:   -20°C to 60°C (-4°F to 140°F)
Protection Level:   IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material:   Aluminum alloy, PC, PC+ABS
Dimensions:   Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.):   Approx. 0.53 kg (1.17 lb)
